Programmable Digital PID Temperature Controller with Built - in Solid State Relay (Blue)

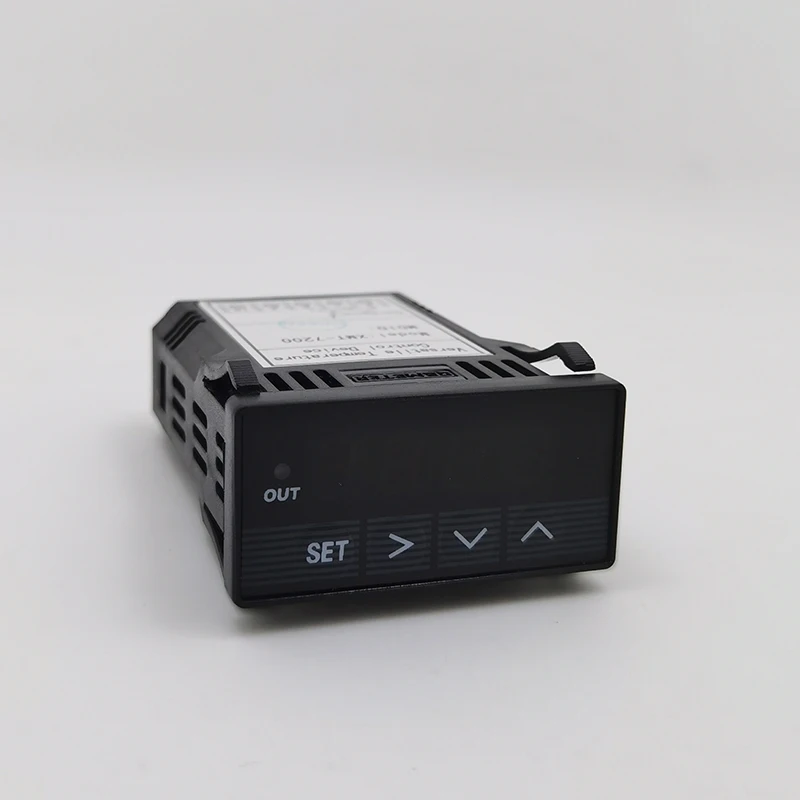

XMT-7200 – 48x24mm Programmable Digital PID Temperature Controller with Built-in 5A Solid State Relay

🔍 The XMT-7200 is a sophisticated and compact temperature control solution tailored for industrial applications. Designed with a panel size of 48x24mm, this intelligent PID temperature controller stands out with its sleek design and multifunctionality. The device is equipped with a vibrant digital display that utilizes white LED technology, ensuring clear readability in various lighting conditions.

1. Overview

⚙️ The XMT-7200 boasts advanced microprocessing capabilities, which enable it to provide automated self-adaptation to different thermal systems. It offers flexibility in temperature unit selection, allowing users to toggle between degrees Celsius and degrees Fahrenheit with ease. This versatility makes it suitable for a wide range of temperature-sensitive applications.

2. Control Options

🔧 This model features five distinct control options tailored to diverse operational needs:

• Alarm relay output for notifications
• Relay contact PID output for standard control
• SSR fully non-contact level PID output combined with an alarm output
• SSR level control with feedback for enhanced control performance
• Backlash relay control for precise adjustments

🛠️ 3. Key Technical Specifications

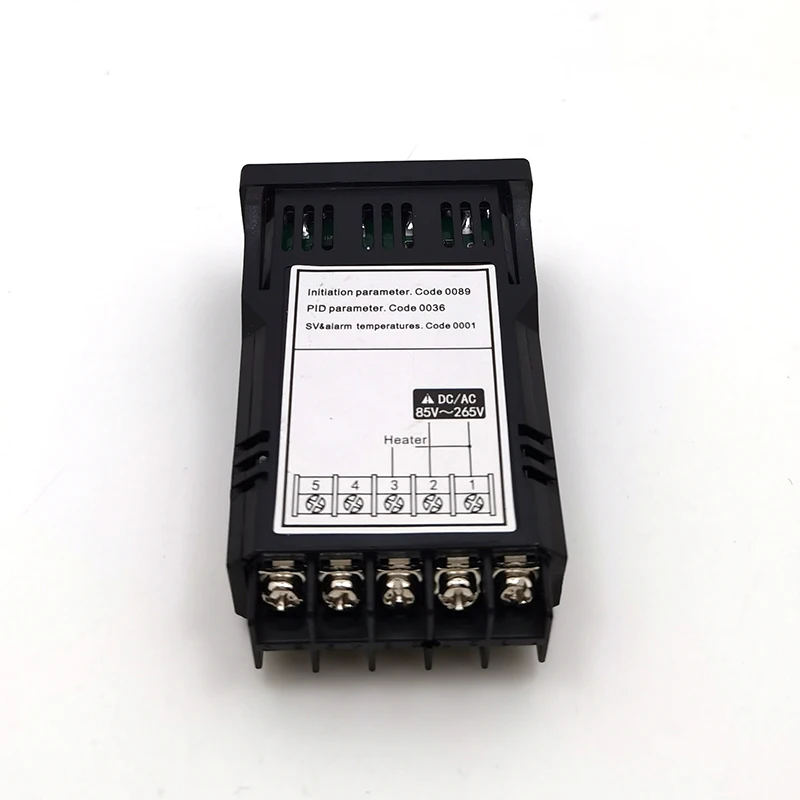

The XMT-7200 is versatile in terms of input options, accepting RTD inputs (Pt100, Cu50) and various thermocouple types (T, R, J, B, S, K, WRe3-WRe25). It operates on a wide power supply range of AC/DC 85-260V (50/60Hz) with additional options of 12VDC and 24VDC available for specialized applications.

💍 This device also emphasizes reliability, with a contact capacity rated at AC 250V/3A and a remarkable contact lifespan of 100,000 cycles. The built-in solid-state relay (SSR) functions efficiently across an input voltage range of AC 85-260V and up to 5A, ensuring adequate control without mechanical wear.

🪶 With an operational temperature range spanning from -199.9°C to +2300°C, the XMT-7200 is designed to meet the rigorous demands of industrial environments. It maintains impressive measurement accuracy within ±0.2% of full scale, guaranteeing precise temperature management.

4. Environmental Compatibility

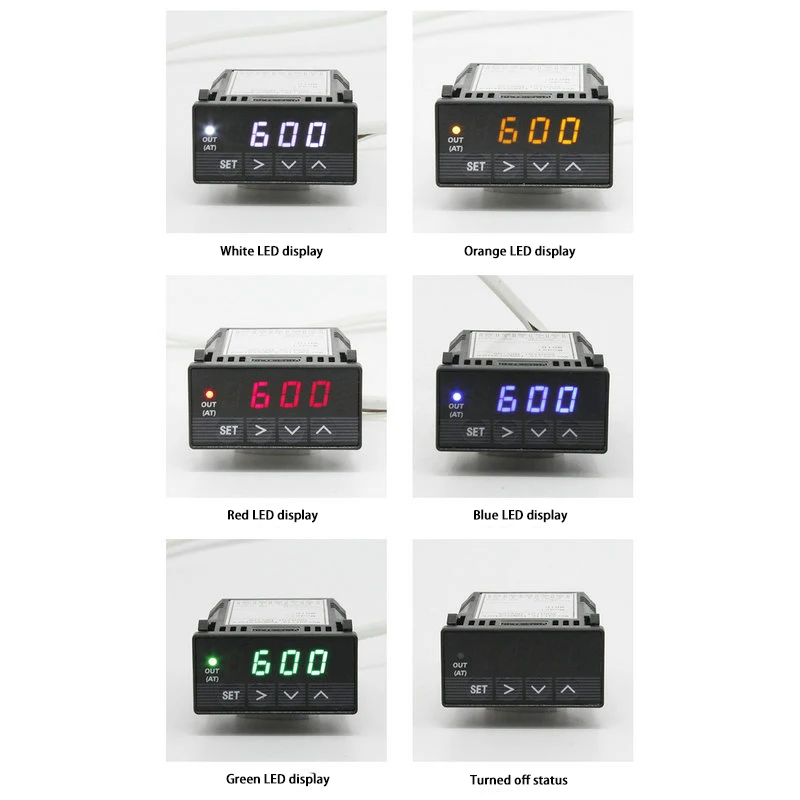

🧩 Its operational environment ranges from 0 to +50°C, with humidity levels up to 85%RH, making it a robust choice for various settings. The LED display is available in multiple colors, including red, blue, white, green, and orange, enhancing visibility and allowing users to customize their interface.

5. Dimensions

🎯 The XMT-7200 features an outline dimension of 48×24×75mm, with a panel dimension of 45×22mm, ensuring that it can fit conveniently into standard installation spaces without compromising on functionality.

🛠️ In summary, the XMT-7200 is an all-inclusive solution for reliable and precise temperature control in industrial applications, engineered to adapt and perform under a variety of conditions while providing user-friendly operation and display.
